UFI Box NEW UPDATE V1.7.0.2661 Release | Big Update | RPMB Key Program | Many More
UFi Box is a powerful EMMC Service Tool that can Read EMMC user data, as well as repair, resize, format, erase, read write and update the firmware on EMMC in Samsung, china phones SK Hynix, Toshiba, Kingston, micron, and other brands.
UFi Box is a tool to repair phones with the ability to:
- Repair EMMC
- Resize EMMC
- Format EMMC
- Write full data, erase fully
- Read boot1
- Read boot2
- Read EXT CSD
- Read User Data
- Update firmware
- Via test point
Features UFI Box:
Hardware Features:
USB 2.0 High-Speed(480 Mbps)
Modern design, with built-in LDO Voltage Out and external power source
Secured with Java smart card and online system
Multiprotocol ready, with 20 (13 usable) multi-purpose IO pins and 1 Full-Speed USB-HOST
Integrated software managed over-current protection
Software Features:
The lowest-cost universal software platform in the market
Work with standalone and user-friendly software
Strong and secure software platform integrated with online(server-based) security
Planned to support as many as possible up-to-date repair solutions
Integrated file synchronizing function
UFI Dongle is a security dongle to be used with UFI Android ToolBox, No additional activation is needed.
Ultra-low-cost, Rich features, Using the same software used by UFIBOX.
• Universal Platform with support for almost all Android brands and models in the market
• Debrick Android Intel devices(ASUS, Lenovo, etc)
• Debrick Android Qualcomm HS-USB QDloader 9008(Xiaomi, Oppo, etc) devices
• Debrick Android MediaTek(Meizu, Oppo, etc) devices
• Repair Imei for Android Intel, Qualcomm, MediaTek (and another platform in a future update)
• Normal flashing via Fastboot, Intel, Qualcomm Sahara or Firehose protocol, and MediaTek
• Regularly Updated Support files for Firmware
FlashTool
FASTBOOT
– Universal Android Fastboot flash client
– Brand and Model-based firmware definition
– Support for Official ASUS .raw and .zip files
– Backup and Restore Android user data, apk files before and after flashing
– Factory reset(erase cache and data ) for Android devices
– “Factory erase before flash” to clean up user data
– “Erase all partitions(black phone)”, this will erase all user data partitions including factory and config, IMEI, and calibration data will be permanently deleted.
this should only be used for “empty board”, for example after you replace the eMMC.
– Included Root script for ASUS Intel devices(‘#’ icon), based on: https://ift.tt/HFwTbvN
there are 4 fastboot OEM triggers available. For newer devices usually “T4” will work, but for A400CG please select “T2”.
INTEL
– Intel SoC Platform Flasher for bricked devices
Supported platform: Moorestown, Medfield, Merrifield, Moorefield, CloverView, and CloverViewPlus
– Pre-packaged debrick file(UFI-ASUS_intel_debrick_package.zip) available for the following devices:
ASUS_T00F(A500CG), ASUS_T00J(A501CG)
ASUS_T00G(A600CG), ASUS_Z002(A601CG)
ASUS_T00I(A400CG)
ASUS_T00K(A502CG)
ASUS_T00Q(A450CG)
ASUS_Z007(ZC451CG)
ASUS_Z008(ZE550ML)
ASUS_Z00A(ZE551ML)
K00Z(ME175CG)
K012(FE170CG)
ImeiTool
currently implemented:
– Imei repair for Intel SoC platform, especially for ASUS Intel devices.
– Imei repair for Qualcomm and MediaTek(AT mode or META mode).
WARNING: IMEI Changing is illegal in most countries. Only use this function to restore the original IMEI !!!
AdbTool
– Dump all the eMMC partitions
extcsd, boot1, boot2, gp part, and user area partition
– Read and write single partitions for example factory, config, modemst1, modemst2, etc
WARNING: dump result might be corrupted due to the limitation of ADB server and client in the windows environment, to resolve this please insert MicroSD into the device and use the “Dump to microSD” checkbox
– Screencap to capture the device screen, which might be useful for documentation or repairing a phone with faulty LCD
– Clear or Disable the PERM_WRITE_PROTECT bit in the CSD field, to fix or avoid the “cannot be wiped” problem
– DragAndDrop handler for ADB sideload
– DragAndDrop handler for apk install
Compatibility
What are the supported OSes?
UFI software is developed inside Windows 7 64bit environment, but it can work with All other Windows versions starting Windows XP.
However, we recommend using the software with Windows 7 or later.
We have tested the software and drivers to be working with the following OSes:
- Windows XP Service Pack 3 (32bit)
- Windows 7 Home (32bit)
- Windows 7 Ultimate (32bit)
- Windows 7 Ultimate (64bit)
- Windows 8 Profesional (64bit)
- Windows 8.1 Profesional (64bit)
- Windows 10 Final (64bit)
- Windows 11 (64bit)
Changelog!!!
UFI Software version 1.7.0.2661
eMMC ToolBox changes:
Requires UFIBOX with firmware version 1.15
ADD: RPMB read/write/provisioning support
BUGFIX: Minor bugfixes and improvements
UFS ToolBox changes:
Requires UFI UFS-PROG with firmware version 1.37
ADD: RPMB read/write/provisioning support
ADD: Special Task implemented
BUGFIX: Fixed known Read/Write/Erase bugs
BUGFIX: Minor bugfixes and improvements
Android ToolBox changes:
ADD: [MediaTek] Introduced Custom (DA) loader
Custom loader will enables the following features:
- RPMB read/write support
- Lock/Unlock Bootloader and so on
ADD: Bypass Security and Custom loader option
BUGFIX: Minor bugfixes and improvementsHow To Use?
- Extract the UFI Software setup files and copy UFI_ufs-isp-pictures-pkg.7z to the same directory.
- To install the driver,
- please check the "UFI Box and UFI UFS-Prog Driver" checklist during the installation process.
-
after the software installation process is successful,
- please connect the UFI UFS-Prog to the USB port, we recommend connecting it to the USB 3.1 port for maximum speed.
- Open Device Manager, and make sure the UFI UFS-Prog driver is recognized there.

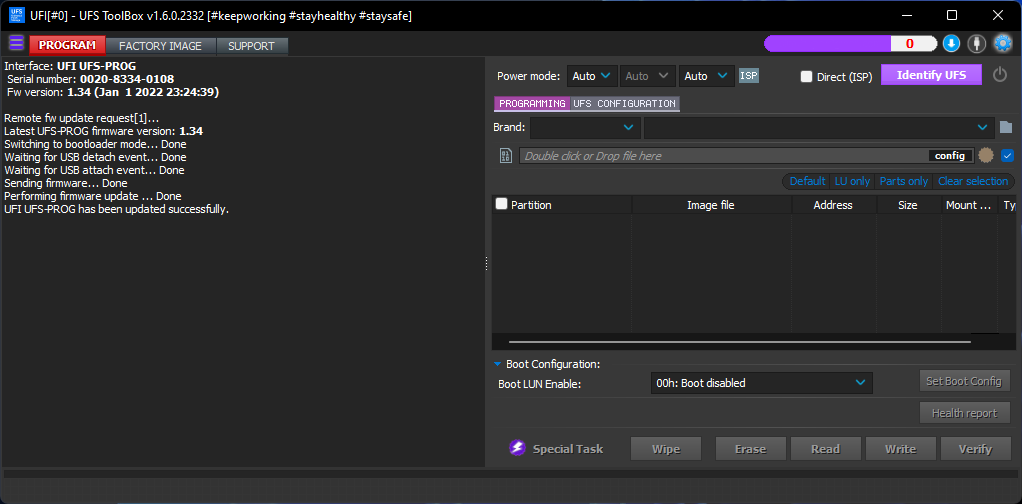

- Now you can open the UFS ToolBox.
- The first time the application opens, it will ask you to activate it.
- Please click the "Activate UFS ToolBox" button to activate it.
- Make sure your PC is connected to the internet during activation
- If the application does not open automatically, manually reopen the UFS ToolBox.
- Once activated and open, please upgrade the UFI UFS-PROG firmware in the settings menu.
- UFS ToolBox requires UFI UFS-PROG with firmware version 01.34 to work properly.
- Finally, now you can operate UFI UFS ToolBox.
- And please read carefully the release notes to understand what features are in the latest UFI software,
- and adjust them according to your needs.
- Have fun, Keep working, stay healthy, stay safe, and get vaccinated.
Download Links:
| File | Information |
|---|---|
| Name | UFI Box NEW UPDATE V1.7.0.2661 |
| Size | 289.8 MB |
| Link | Mega \ https://ift.tt/inao5De |
README:
Compatibility: The tool runs perfectly on Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, and Windows 10 (32-bit and 64-bit).
Take a Backup: If you are willing to try the above tool, then please take a backup of your personal data from your Android Smartphone or Tablet. As flashing any Firmware or recovery may brick the device.
Credits: UFI Box is created and distributed by the developer. So, full credits go to the developer for sharing the tool for free.
